IP65 3W 5W LED Recessed Wall Light Step Linear Lighting For Stair Corner

Name: IP65 3W 5W LED Recessed Wall Light Step Linear Lighting For Stair Corner
Brand: Joyful partner
Price: 1 USD

China IP65 3W 5W LED Recessed Wall Light Step Linear Lighting For Stair Corner wholesale

Place of Origin : Guangdong, China

Brand Name : Joyful partner

Model Number : 819067

Certification : CE,ROHS,IP65,TUV,ISO

Packaging Details : Carton

Supply Ability : 500000 Piece/Pieces per Week

MOQ : 2 pieces

Price : Negotiable

Color Temperature(CCT) : 2700k-6000k

Input Voltage(V) : DC 12V24V AC100-240V

Warranty(Year) : 2-Year

Color Rendering Index(Ra) : 80

Usage : Staircase

Voltage : 100-240V

Base Material : Aluminum

Diffuser : Tempered Glass

Light Source : LED

Lighting solutions service : Project Installation

Lifespan (hours) : 50000

Working Time (hours) : 50000

Product Weight（kg） : 0.5

Product name : Led Step Light

Material : Aluminum Body

IP Rating : IP65

Style : Morden

Installation Method : Recessed

Keyword : led wall light stair light step light corner light

Wattage : 3W 5W

Color : white,grey,support cutomization

Application : garden, coner,stair, path

Contact Now

IP65 3W 5W LED Step Light Recess Linear Light LED Wall Lamp Buried Light For Stair Corner

IP65 3W 5W LED Recessed Wall Light Step Linear Lighting For Stair Corner

Item No.	Light source	Lens beam angle(°)	Consumption(watt)	Input Voltage(V)	Ik rate
819067	SMD5630*6	N/A	3	DC12V/DC24V AC100-240V	9
819058	1*5W COB LED	N/A	5.5	DC12V/DC24V AC100-240V	9

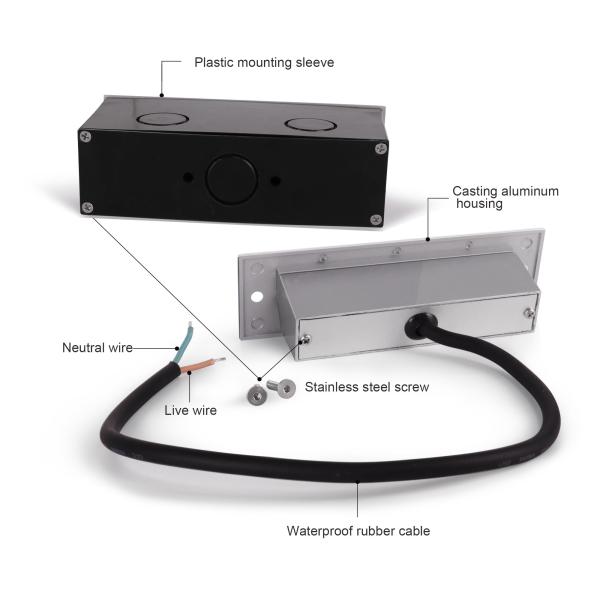

Material specifications
Housing&Front cover	Made of ADC12#Die-casting outdoor powder coated aluminum
Glass	Tempered glass.T=4mm
Lens	Optical lens,effciency≥85%
Gasket	Tooling shaped seal
LED	SMD or COB LED,Ra>80
PCB	Excellent heat conductivity aluminum, coeffcient of heat conductivity≥2.0w/mk
Driver	Constant current output single color LED=1-circuit output
Operating temperature	(-20℃~40℃)
Power cable	H05RN-F20.75mm²L=0.3m(low voltage) H05RN-F30.75mm²L=0.3m(high voltage)

1. Brand LED high lumen, energy saving, soft light,

2. Anti-oxidation all-aluminum housing,

3. CE & RoHS proved,

4. IP65 Waterproof,

5. Support DMX512,Dali,0-10V dimmable etc...

6. Square, Round, linear shape meet various engineering needs,

7. Outdoor and Indoor Step/Stair/corridor both can be used.
